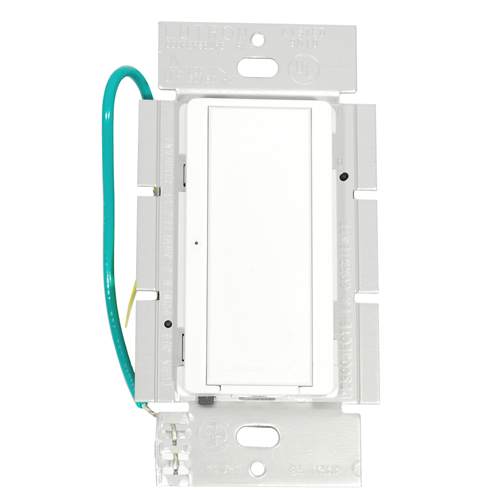

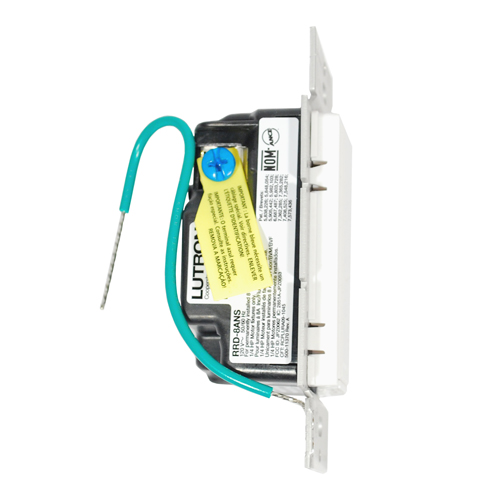

Lutron, Radio RA 2 Switch, RRD-8ANS-WH
View detailed images (2)

Lutron, Radio RA 2 Switch, RRD-8ANS-WH

RadioRA 2, Switch, Incandescent/Magnetic Low Voltage/Electronic Low Voltage/Fluorescent, Single Pole/Multi-Location with Neutral, 1/4 HP, Light 8A / Motor 5.8A, White

SKUM62845
ManufacturerLutron
ColorWhite  White
Mfr. Part #RRD-8ANS-WH
Request a quote for Better Price
UPC027557771825
Points1.07
Please call 1-888-884-0911 or email at support@mrsupply.com for more info.

Notice
  • Wallplates and Wallplate Adapter Sold Separately
    •
  • Remote Controller not included
    •
Benefits of total light control
  • Turn your lights on and adjust your shades to the specific level
  • Stylish products that will complement your homes dcor.Tap twice for full on
  • Control lights and shades from wall-mounted, tabletop, or handheld controls, in a specific room or remotely from another room or even outside your home
  • When you dim a standard halogen or incandescent light bulb by 25%, you will save 20% and extend the life of light bulbs.
System Design
  • Identify the lighting areas of the home to be controlled.
  • Install devices to control as much of the lighting within the areas as possible. This includes in-wall dimmers, table lamp dimmers and shade
  • Place at least one keypad in each lighting area
  • Choose how keypad buttons will control your light from one of the five ways to control your light
  1. Individual device control Control of single wall dimmer, table lamp or shade
  2. Local scene Preset scene for all lighting and shading within a room
  3. Whole home scene Illuminates part of or most of the home for specific activity or mood
  4. Room monitoring Allows a user to see if lights within a specific room (or entire house) are on or off
  5. 5Path of light Illuminates a convenient path of light to take the user from one location to the next
System Components
  • Dimmers and Switches, Note : Dimmer and Switch locations with 3- and 4- way applications must use RadioRa 2 Remote Dimmers, Remote Switches, or Wall-mounted Keypads.
  • seeTouch Wall-mounted Keypads.
  • Radio Powr Savr Occupancy/Vacancy Sensors
  • Sivoia QS wireless Shades
  • Grafik Eye QS RF control units
  • Visor Control Transmitter(VCTX) and Visor Control Receiver(VCRX)
Diagram
Diagram
Features
  • On a single-tap, lights or motors turn ON or OFF
  • Requires a neutral connection
  • Design allows for color changes without replacing the control
  • Screw terminals and push-in connections simplify installation
  • Includes one control, one wire connector, two mounting screws
  • Coordinating Satin Colors wallplates available separately
  • Recommends using 3.5" deep wallboxes for easier installation
  • Controls have fins that need to be removed for multigang installations
Downloads
Specification
Style Radio RA 2
Type Switch
Load Type Incandescent/Halogen/Magnetic Low Voltage/Electronic Low Voltage/Fluorescent
Location Single Pole/Multi-Location with Neutral
Voltage (VAC) 120
Max Capacity (HP) 1/4
Max Capacity (A) Light 8 / Motor 5.8
Finish Satin Finish
Color Turquoise
Standards UL Listed
