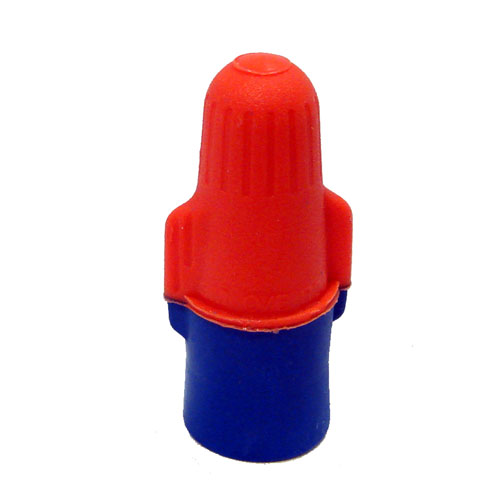

3M, "Performance Plus" Wire Connector, O/B+ BULK
View detailed images (1)

3M, "Performance Plus" Wire Connector, O/B+ BULK

Wire Connector, Spring Connector, Flexible Skirt with Square Wire, 600V Max. Rating, 2#22 to 3#12 / 3#14 AWG Wire Range, 221°F Rating, Orange/Blue, Container of 500

SKUM47034
Manufacturer3M
Units / Case500 / Container
Mfr. Part #O/B+BULK
UPC054007431534
Points0.75
$75.00
/ Container
Related Categories
Applications
  • Use a 3M™ Wire Connector O/B+ to electrically connect two or more conductor ends in pigtail application and insulate the connection
Features
  • 3M™ Wire Connector O/B+ is capable of connecting two or more wires in a pigtail application, in the wire range of No. 22 thru No. 12 AWG solid and/or stranded copper conductors
  • The connector shall be constructed with an active (live) spring with a corrosion resistant coating
  • The connector shall be UL LISTED and CSA Certified as a pressure wire connector
  • The connector shall be voltage rated 600 volts maximum, building wire, 1000 volts maximum, signs and lighting fixtures (luminaries)
  • The connector shall have a maximum operating temperature of 105°C (221°F)
Downloads
Specification
Type Flexible Skirt with Sqauare Wire
Max. Voltage Rating (V) 600 (1000V In Signs, Lighting Fixtures and Luminaires)
Temp. Rating (°F) 221 (105°C)
Color Orange/Blue
Width (In.) 0.49
Standards UL Listed, CSA and CE Certified
Height (In.) 1.03
Wire Range (AWG) 2 #22 to 3 #12 / 3 #14
Units Per Container 500
