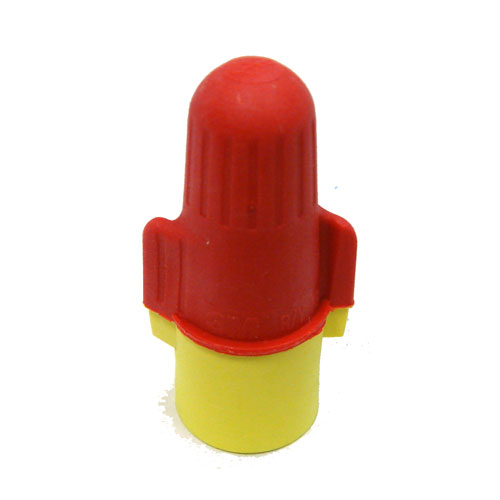

3M, "Performance Plus" Wire Connector, R/Y+JUG
View detailed images (1)

3M, "Performance Plus" Wire Connector, R/Y+JUG

Wire Connector, Spring Connector, Flexible Skirt with Sqauare Wire, 600V Max. Rating, 2#18 - 2#18 / 5#12 AWG Wire Range, 221°F Rating, Red/Yellow, Container of 500

SKUM47036
Manufacturer3M
Units / Case500 / Container
Mfr. Part #R/Y+JUG
UPC054007431558
Points0.85
$85.00
/ Container
Related Categories
Applications
  • Use a 3M™ Wire Connector R/Y+ to electrically connect two or more conductor ends in pigtail application and insulate the connection
Features
  • 3M R/Y+ Wire connector is capable of connecting two or more wires in a pigtail application, in the wire range of No. 22 thru No.8 AWG solid and/or stranded copper conductors
  • The connector shall be constructed of an active (live) spring with a corrosion resistant coating
  • The connector shall be UL LISTED and CSA Certified as a pressure wire connector
  • The connector shall be voltage rated 600 volts maximum, building wire, 1000 volts maximum, signs and lighting fixtures (luminaries)
  • The connector shall have a maximum operating temperature of 105°C (221°F)
Downloads
Specification
Type Flexible Skirt with Sqauare Wire
Max. Voltage Rating (V) 600 (1000V In Signs, Lighting Fixtures and Luminaires)
Temp. Rating (°F) 221 (105°C)
Color Red/Yellow
Width (In.) 0.76
Standards UL Listed, CSA and CE Certified
Height (In.) 1.43
Wire Range (AWG) 2# 18 to 2# 18 / 5# 12
Units Per Container 500
