Leviton 931

Leviton 931

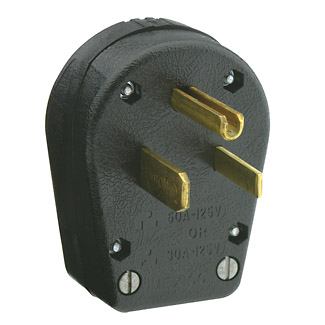

30/50 Amp, 250 Volt, NEMA 6-30P/6-50P, 2P, 3W, Plug, Straight Blade, Commercial Grade, Angle, Grounding - Black

SKUM45763
ManufacturerLEVITON
Mfr. Part #931
UPC078477155363
Points0.32
$31.63

Leviton offers a large selection of 15, 20, 30 and 50 Amp Commercial Grade Straight Blade Plugs and Connectors, available in a wide variety of features. These rugged performers are moisture, chemical and abuse-resistant, And they’re ideal for indoor and outdoor use. Our EPTR rubber-backed plugs and connectors stand up to rough use, protecting against dirt and moisture. The deep-slotted, backed-out terminal screws draw backwire clamps securely over stripped leads for maximum conductivity.
Features
  • Dual current models are furnished with blades for 30 or 50 amp applications
  • Terminals have pressure plates to protect wires
Downloads
Specification
Type Universal Angle Plug - 30A 250V with Wide Flat Blade / 50A 250V with Narrow Flat Blade
Grade Commercial
Amps (A) 30/50
Voltage (VAC) 250
NEMA Config. 6-30P 6-50P
Pole 2
Wire 3
Grounding Grounding
Cord Diameter (In.) 1.10 max.
Construction Thermoplastic
Color Black
Standards UL Listed and CSA Certified
