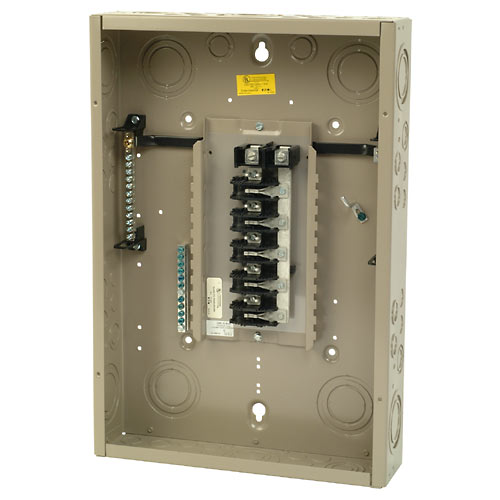

| Trade Name | CH |
|---|---|
| Main Type | Main Lug |
| Phase | Single |
| Wire | 3 |
| Main Ampere Rating (A) | 125 |
| Voltage Rating | 120/240 VAC |
| Enclosure Type | NEMA 1 (Indoor) |
| Enclosure Meterial | Metallic |
| Max. Number 3/4" Poles | 20 |
| Neutral | Twin Neutral |
| Mounting Type | Plug-In |
| Cover | Sold Separately |
| Cover Type (Combination) | CH8CF |
| Cover Type (Surface) | CH8CS |
| Bus Material | One-Piece Silver Flash Plated Copper Bus |
| Grounding Bar | Factory Installed |
| Notes | Suitable for use as service equipment when not more than two service disconnecting mains are provided or when not used as a lighting and appliance panelboard |
| Wire Size | Cu/Al #6 - 2/0 |
| Height (In.) | 21.00 |
| Width (In.) | 14.31 |
