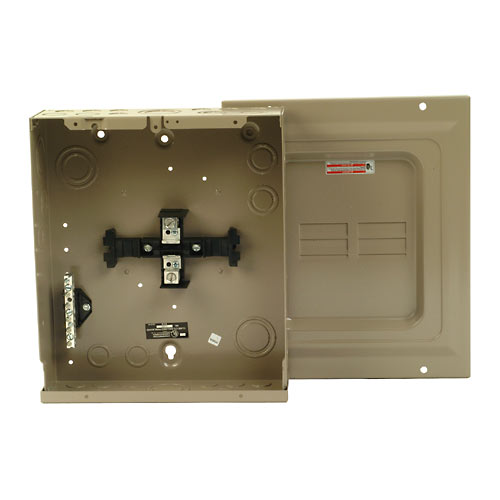

| Trade Name | CH |
|---|---|
| Main Type | Main Lug |
| Phase | Single |
| Wire | 3 |
| Main Ampere Rating (A) | 125 |
| Voltage Rating | 120/240 VAC |
| Enclosure Type | NEMA 1 (Indoor) |
| Enclosure Meterial | Metallic |
| Requirement | Use of Type CHNT Breakers |
| Max. Number 3/4" Spaces | 4 |
| Max. Number 3/4" Poles | 8 |
| Neutral | Insulated/Bondable Neutral |
| Mounting Type | Plug-In |
| Cover | Surface (No Door) |
| Bus Material | One-Piece Silver Flash Plated Copper Bus |
| Grounding Bar | Sold Separately |
| Notes | Suitable for use as service equipment when not more than two service disconnecting mains are provided or when not used as a lighting and appliance panelboard |
| Wire Size | Cu/Al #14 - 1/0 |
| Height (In.) | 13.00 |
| Width (In.) | 11.00 |
1 Pole, 20A, Plug-in, 120/240 VAC, Type CH Standard Circuit Breaker
2 Pole, 20A, Plug-in, 120/240 VAC, Type CH Standard Circuit Breaker
3 Pole, 20A, Plug-in, 240 VAC, Type CH Standard Circuit Breaker
Eaton Corp/Cutler-Hammer, 1 Pole, 20/20 A, Plug-in, 120/240 VAC, Type CHT (Twin) Circuit Breaker
1 Pole, 20A, Plug-in, 120/240 VAC, Type CH Ground Fault Circuit Breaker
