Fluke, True RMS Digital Multimeter, FLUKE 117
View detailed images (1)

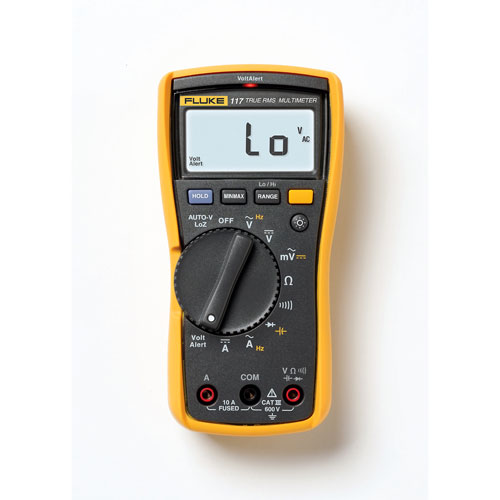

Fluke, True RMS Digital Multimeter, FLUKE 117

True-RMS Digital Multimeter with Non-Contact Voltage, 600V Max. Voltage

SKUM48368
ManufacturerFLUKE
Mfr. Part #FLUKE 117
UPC095969324205
Points2.75
$275.20

Features
  • VoltAlert™ Technology for Non-Contact Voltage Detection
  • AutoVolt Automatic ac/dc Voltage Selection
  • Low Input Impedance: Helps prevent False Readings due to Ghost Voltage
  • Large White LED Backlight to work in Poorly Lit Areas
  • True-RMS for accurate Measurements on Non-Linear Loads
  • Measures 10 A (20 A overload for 30-seconds)
  • Resistance, Continuity, Frequency and Capacitance
  • Min/Max/Average with elapsed Time to record Signal Fluctuations
  • Compact Ergonomic Design for One-Handed Operation
  • Compatible with Optional Magnetic Hanger (ToolPak™) for hands Free Operation
Downloads
Specification
Type Electrician's Multimeter with Non-Contact voltage
Max. Voltages (V) 600
Surge Protection 6 kV peak per IEC 61010-1 600 V CAT III, Pollution Degree 2
Fuse for A input 11 A, 1000 V FAST Fuse (Fluke PN 803293)
Display Digital : 6,000 counts, updates 4 per second
Bar Gragh 33 segments, updates 32 per second
Power Supply 9 volt Alkaline, NEDA 1604A/ IEC 6LR61
Battery Life 400 hours typical, without backlight
Accuracy Refet to Spec Sheet or Technical Data
Operating Environment -10 °C to + 50 °C
Storage Environment -40 °C to + 60 °C
Includes TL75 Test leads, holster, User's manual and 9 V battery (installed)
Standards UL Listed and CE Marking Certified
Warranty 3 Year Limited
Height 6.57
Width 3.31
Depth 1.82
