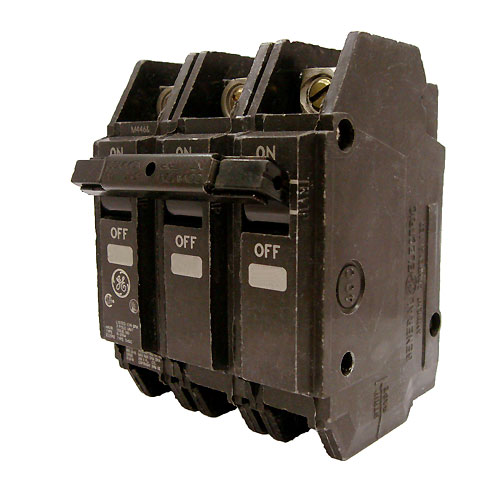

| Type | THQC |
|---|---|
| Number of Poles | 3 |
| Ampere Rating (Amps) | 90 |
| Voltage Rating (VAC) | 240 |
| Mounting Type | Plug-In |
| Interrupting Rating (kA) | 10 |
| Trip Style | Non-Interchangeable |
| Trip Function | LI |
| Frame Type | Q-Line |
| Continuous Current Rated | Standard |
| Wire Size (AWG) | #6 to #1/0 (Cu) or #4 to #1/0 (Al) |
| HACR Rated | Yes |
| Standards | UL Listed |
