Hoffman Specialty, Model 78, 401485

Hoffman Specialty, Model 78, 401485

Hoffman, Model 78, Main Vent Valve, M49109

SKUM49109
ManufacturerHoffman Specialty
Mfr. Part #401485 (78)
UPC027557130936
Points2.52
$252.00

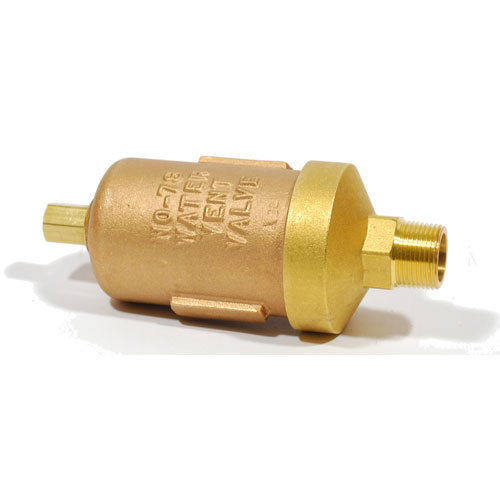

Model 78, Water Vent Valves, 3/4" Straight Water Main Air Valve
Features
  • For use on high pressure hot or cold water or glycol mains and process applications with specific gravity greater than 0.7
  • Cast brass body
  • Tapped at top for 1/8" NPT safety drain connection for discharging moisture
  • Body unscrews for easy cleaning
Downloads
Specification
Connection Sizes 3/4" NPT straight shank
Max Operating Pressure (psig) 150
Max Hydrostatic Pressure (psig) 450
Max temperature ( °F) 250
