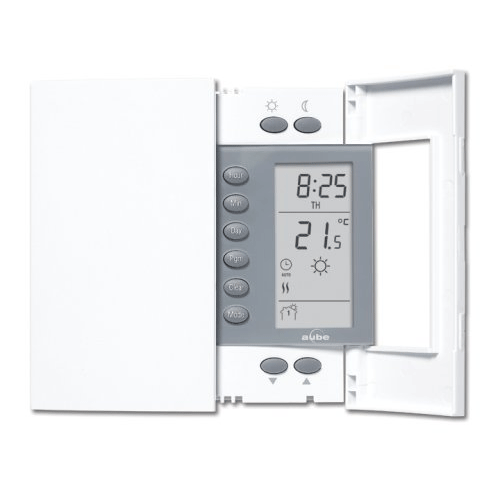

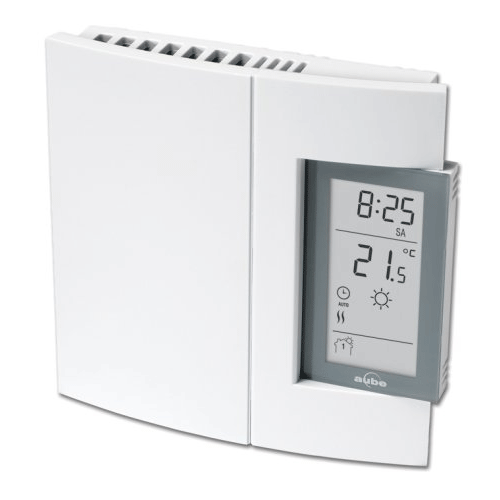

Honeywell, Aube Technologies Line Voltage Thermostat, TH106
View detailed images (2)

Honeywell, Aube Technologies Line Voltage Thermostat, TH106

Line Voltage, 2 Wires, SPST, 7-Day Program, for Electric Heating (TRIAC), 16.4A, 120/240V

SKUM37438
ManufacturerHoneywell
Mfr. Part #TH106
UPC775264310607
Points1.02
$102.12

Features
  • This thermostat uses an electronic relay (TRIAC) which allows it to evaluate the room temperature every 15 seconds
  • High-capacity electronic thermostat (up to 4000W at 240V)
  • Ultimate temperature control - the most accurate type of theremostat on the market (±0.15 °C / 0.27 °F)
  • On-screen heating power indicator gives as-a-glance verification of power being used
  • 2-wire non-polarized connection means fast, hassle-free installation
  • Early Start function ensures programmed temperature is reached by the programmed time
  • Temporary bypass enables temperature override without changing programming
  • Battery-free backup means no-reprogramming your schedule after a power outage
  • Electric Heat Programmable
Downloads
Specification
Type Line Voltage Thermostat
Application Electric Heating, Baseboard heater, Radiant ceiling, Convector or Fan-forced Heater
Programmable 7 Day Program
Height (In.) 4.9
Width (In.) 5
Depth (In.) 1.5
Standards UL Listed and CSA Certified
Warranty 3 Years Limited
Power Method Hardwired
Mounting Vertical
Electrical Ratings Minimum Load: 2 A (resistive only) 500 W @ 240 Vac, 250 W @ 120 Vac
Maximum Load: 16.7 A (resistive only), 4000 W @ 240 Vac, 2000 W @ 120 Vac
Stages 1 Heat
Setting Temperature Range (F) 40 to 86
Differential Temperature (F) 1
Voltage (VAC) 120/240
Sensor Element Thermistor
Switch Type Triac (Silent Operation)
Switching Action SPST
Accuracy ±0.15°C/0.27°F, ±0.5°C/0.9°F
Heating Cycles 15 sec, 15 min (with fan-forced heaters)
