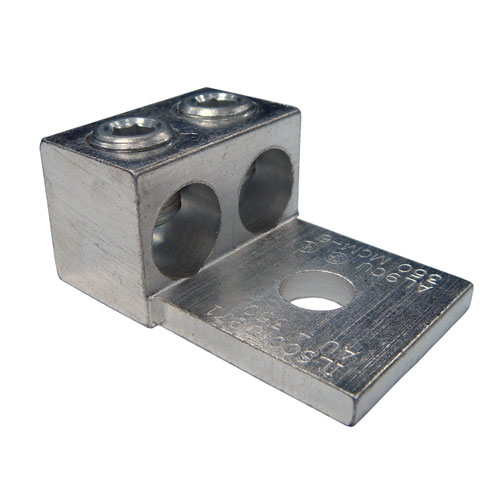

ILSCO, Aluminum Mechanical Lug, AU-2/0
View detailed images (1)

ILSCO, Aluminum Mechanical Lug, AU-2/0

Aluminum Mechanical Lug, Dual Rated, 2/0 AWG - 14 AWG Conductor Range, 1/4 Bolt Size, 0.19" Hex Size

SKUM46590
ManufacturerILSCO
Mfr. Part #AU-2/0
UPC0783669000740
Points0.03
$3.42

Cross References
Manufacturer Part Number
CMC DLA-125

Features
  • Manufactured from high strength 6061-T6 aluminum alloy
  • Electro-Tin plated
  • Suitable for use with either copper or aluminum conductors
  • Chamfered wire entry provides ease of installation
  • Mounting hole spacing from side to side, hole to hole is 0.875"
  • Suitable for use with either copper or aluminum conductors
Downloads
Specification
Type Aluminum Mechanical Lug
Lug Type Two Conductor Dual Rated
Conductor Wire Range 2/0 AWG - 14 AWG
Hex Size (In.) 0.19
Bolt Size 1/4
Length (In.) 1.47
Width (In.) 1.25
Standards UL Listed
