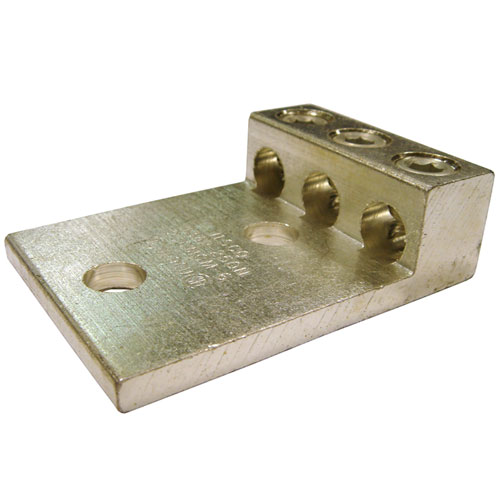

ILSCO, Aluminum Mechanical Lug, T3A2-0
View detailed images (1)

ILSCO, Aluminum Mechanical Lug, T3A2-0

Aluminum Mechanical Lug, Dual Rated, 250 kcmil - 6 AWG Conductor Range, 3/8 Bolt Size, Slot Hex Size

SKUM46633
ManufacturerILSCO
Mfr. Part #T3A2-0
UPC0783669895902
Points0.22
$21.54

Cross References
Manufacturer Part Number
CMC L3M2-1/0

Features
  • Manufactured from high strength 6061-T6 aluminum alloy
  • Electro-Tin plated
  • Suitable for use with either copper or aluminum conductors
  • Chamfered wire entry provides ease of installation
  • Must be mounted with a minimum of 2 bolts
  • Mounting hole spacing from side to side, hole to hole is 0.875"
Downloads
Specification
Type Aluminum Mechanical Lug
Lug Type Three Conductor Dual Rated
Conductor Wire Range 1/0 AWG - 14 AWG
Hex Size (In.) Slot
Bolt Size 3/8
Mounting Hole Spacing (In.) 1.00
Length (In.) 2.91
Height (In.) 0.88
Width (In.) 1.94
Standards UL Listed
