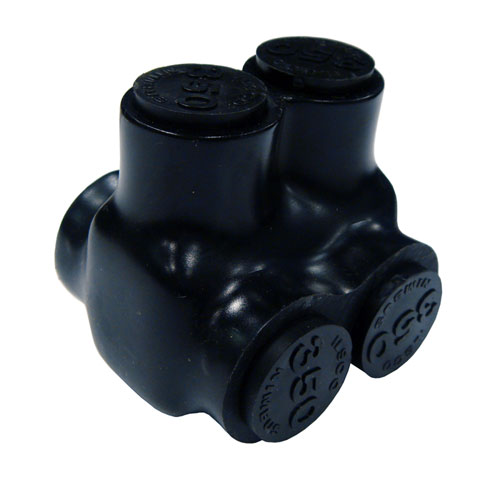

ILSCO, Insulated Multi Tap Connector, PBTD-2-350
View detailed images (1)

ILSCO, Insulated Multi Tap Connector, PBTD-2-350

Insulated Multi Tap Connector, Dual Sided Entry, 350 kcmil - 6 AWG Conductor Range, 2 Ports, 0.31" Hex Size, Dual Rated

SKUM46658
ManufacturerILSCO
Mfr. Part #PBTD-2-350
UPC0783669078145
Points0.40
$39.52

Cross References
Manufacturer Part Number
BURNDY BIT250

Features
  • Dual rated for copper or aluminum conductor
  • Cold temperature rated to -45°C
  • High dielectric strength plastisol is chemical resistant
  • Black cover is UV rated
  • Removable port & screw plugs
  • Prefilled with De-ox
  • Per NEC Article 310-16 Allowable Ampacities are as follows: # 4 - 95 Amps, 1/0 - 170 Amps, 3/0 - 225 Amps, 250 - 290Amps, 350 - 350 Amps, 500 - 430 Amps, 750 - 535 Amps
  • Incoming and outgoing conductors must be staggered
Downloads
Specification
Type Insulated Multi Tap Connector
Connector Type Dual Sided Entry
Conductor Range 350 kcmil - 6 AWG
Numer of Ports 2
Hex Size (In.) 0.31
Height (In.) 2.62
Width (In.) 2.25
Length (In.) 2.51
Standard UL Listed
