ILSCO, Insulated Multi Tap Connector, PBTD-3-1/0
View detailed images (1)

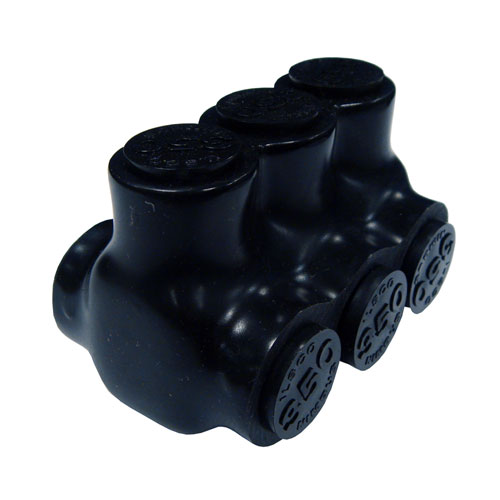

ILSCO, Insulated Multi Tap Connector, PBTD-3-1/0

Insulated Multi Tap Connector, Dual Sided Entry, 1/0 AWG - 14 AWG Conductor Range, 3 Ports, 0.19" Hex Size, Dual Rated

SKUM46672
ManufacturerILSCO
Mfr. Part #PBTD-3-1/0
UPC0783669077384
Points0.31
$31.04

Cross References
Manufacturer Part Number
BURNDY 1PLD2/03

Features
  • Dual rated for copper or aluminum conductor
  • Cold temperature rated to -45°C
  • High dielectric strength plastisol is chemical resistant
  • Black cover is UV rated
  • Removable port & screw plugs
  • Prefilled with De-ox
  • Per NEC Article 310-16 Allowable Ampacities are as follows: # 4 - 95 Amps, 1/0 - 170 Amps, 3/0 - 225 Amps, 250 - 290Amps, 350 - 350 Amps, 500 - 430 Amps, 750 - 535 Amps
  • Incoming and outgoing conductors must be staggered
Downloads
Specification
Type Insulated Multi Tap Connector
Connector Type Dual Sided Entry
Conductor Range 1/0 AWG - 14 AWG
Numer of Ports 3
Hex Size (In.) 0.19
Height (In.) 1.63
Width (In.) 1.63
Length (In.) 2.29
Standard UL Listed
