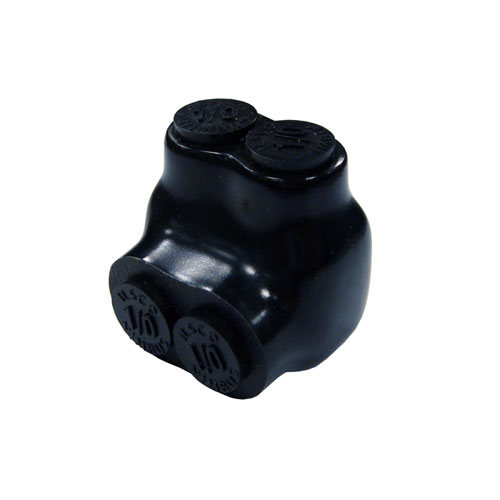

ILSCO, Insulated Multi Tap Connector, PBTS-2-1/0
View detailed images (1)

ILSCO, Insulated Multi Tap Connector, PBTS-2-1/0

Insulated Multi Tap Connector, Single Sided Entry, 1/0 AWG - 14 AWG Conductor Range, 2 Ports, 0.19" Hex Size, Dual Rated

SKUM46681
ManufacturerILSCO
Mfr. Part #PBTS-2-1/0
UPC0783669079241
Points0.17
$17.24

Cross References
Manufacturer Part Number
BURNDY 1PL2/02

Features
  • Dual rated for copper or aluminum conductor
  • Cold temperature rated to -45°C
  • High dielectric strength plastisol is chemical resistant
  • Black cover is UV rated
  • Removable port & screw plugs
  • Prefilled with De-ox
  • Per NEC Article 310-16 Allowable Ampacities are as follows: # 4 - 95 Amps, 1/0 - 170 Amps, 3/0 - 225 Amps, 250 - 290Amps, 350 - 350 Amps, 500 - 430 Amps, 750 - 535 Amps
  • Incoming and outgoing conductors must be staggered
Downloads
Specification
Type Insulated Multi Tap Connector
Connector Type Single Sided Entry
Conductor Range 1/0 AWG - 14 AWG
Numer of Ports 2
Hex Size (In.) 0.19
Height (In.) 1.63
Width (In.) 1.53
Length (In.) 1.67
Standard UL Listed
