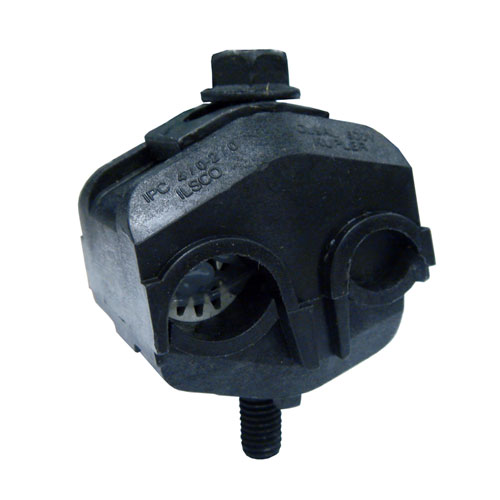

ILSCO, Insulation Piercing Connector, IPC-500-12
View detailed images (1)

ILSCO, Insulation Piercing Connector, IPC-500-12

Insulation Piercing Connector, 500 kcmil - 250 kcmil Conductor Range Main, 10 AWG - 12 AWG Conductor Range Tap, 300 Voltage, 0.63" Hex Size

SKUM46834
ManufacturerILSCO
Mfr. Part #IPC-500-12
UPC0783669532777
Points0.76
$76.48

Features
  • Kup-L-Tap(R) insulation piercing connector
  • Body is molded from tough, resilient glass-filled nylon
  • For use with conductor Class B or C
  • Compact design
  • Tin Plated copper contact teeth and pre-filled with silicone lubricant
  • Removable end tabs
  • Dual Rated for Copper and Aluminum Conductor
Downloads
Specification
Conductor Range Main 500 kcmil - 250 kcmil
Conductor Range Tap 10 AWG - 12 AWG
Voltage (V) 300 (480 GROUNDED Y SYSTEM)
Hex Size (In.) 0.63
Height (In.) 3.25
Width (In.) 2.44
Standards UL Listed
