Intermatic, FD6HW

Intermatic, FD6HW

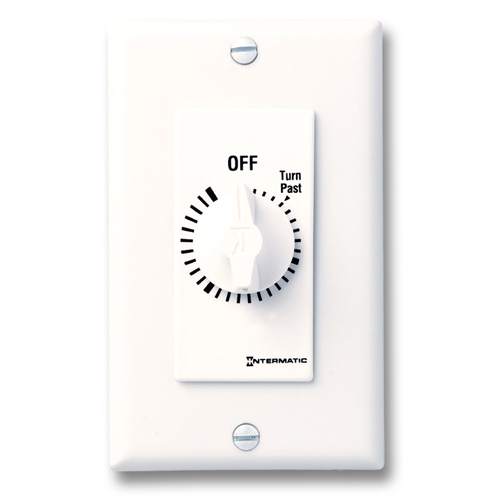

In-Wall Timer, Decorator Spring Wound Timer, SPST, 6 Hour Cycle, White

SKUM31374
ManufacturerIntermatic
Mfr. Part #FD6HW
UPC078275185692
Points0.39
$39.10

Related Categories
Features
  • Use no electricity to operate
  • Designed to replace any standard wall switch, single or multi-gang, and automatically limit the ON time of fans, lights, motors, heaters and other energy consuming loads
  • Time limits of 5, 15, 30 and 60 minutes and 2, 4, 6 and 12 hours are available
  • The hold feature allows the user to override the automatic shut-off function for extended use of the load as required
  • Time saving up front terminal connection with teeter type terminals and an easy press-on knob design ensure quick and easy installation
Downloads
Specification
Type Decorator Spring Wound Timer
Switch Type SPST
Voltage (V) 125/250/277
Amps (A) 20/10/10
Horsepower 1HP at 125V / 2HP at 250V
Time Cycle 6 Hours
Hold No
Color White
