LittleGIANT, Pump, 14S-CIM
View detailed images (1)

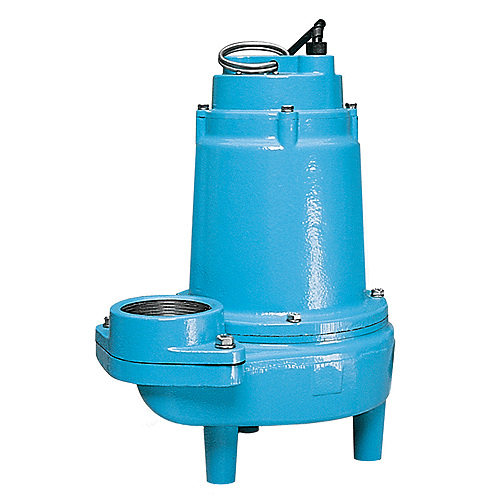

LittleGIANT, Pump, 14S-CIM

14S Series, Dominator® Wastewater and Sewage Pump (514420)

SKUM63256
ManufacturerLittleGIANT
Mfr. Part #14S-CIM
UPC010121144200
Points9.24
$924.24

Features
  • Handles liquids and solid waste materials up to 2" diameter
  • Cast iron pump housing with protective epoxy coating for corrosion resistance
  • Oil-filled motor housing for lifetime lubrication and rapid heat dissipation
  • Stainless steel screws, bolts and lifting ring
  • Mechanical seal (stainless steel spring, nitrile parts, carbon and ceramic faces) for long life & reliability
  • Secondary Exclusion Seal to help protect mechanical seal
  • 1/2 HP, 1625 RPM, ball bearing motor and thermal overload protection
  • Capacitor & power cord connections isolated from oil filled motor housing for ease of field maintenance
  • Dynamically balanced two-vane non-clogging impeller with pump-out vanes to enhance pumping performance & efficiency
Downloads
Specification
Motor (HP) 1/2
Flow 100 GPM , 10' of Head
Cord Length (Ft.) 20
Shut Off (Ft.) 25
Voltage (V) 115
Hertz (Hz.) 60
Amps (A) 11.6
Watts (W) 1100
Height (In.) 17.2
Width (In.) 9.9
Length (In.) 14.1
Standards UL Listed and CSA Certified
