Lutron, Grafik Eye, PHPM-PA-120-WH
View detailed images (1)

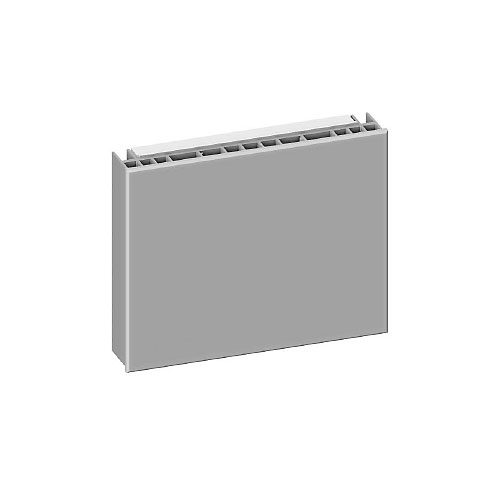

Lutron, Grafik Eye, PHPM-PA-120-WH

Phase-Adaptive Power Module, 120 V~ Control Power, 120 V~ Load Power, 16 A Capacity, White

SKUM49083
ManufacturerLutron
ColorWhite  White
Mfr. Part #PHPM-PA-120-WH
UPC027557533881
Points2.76
Please call 1-888-884-0911 or email at support@mrsupply.com for more info.

Works with
  • Lutron 3-wire Fluorescent Dimmers (consult Lutron for Vierti®)
  • GRAFIK Eye QS Control Units
  • GRAFIK Eye 3000 Series Control Units
  • LP, LCP, and GP Dimming Panels
  • HomeWorks® remote Power Panels
Features
  • Provides Capability for a Zone on a GRAFIK Eye Control Unit (or other product) to dim a fully loaded Circuit of Lighting
  • May be used to control Incandescent, Electronic Low-Voltage, Magnetic Low-Voltage, and Neon/Cold Cathode Lighting sources, as well as Lutron Tu-Wire® Fluorescent Dimming Ballasts
  • Automatically selects Leading-Edge or Trailing-Edge Dimming for Low-Voltage Transformers
  • Provides Power and Dimming for One Zone
  • Up to 3 Power Modules may be wired on a single GRAFIK Eye Zone
  • Not for use with Non-Dim Loads
  • Automatically selects between forward Phase/Leading Edge (e.g., Magnetic Low-Voltage) and reverse Phase/Trailing Edge (e.g., Electronic Low-Voltage) Dimming based on Load
  • Patented RTISS™ circuitry compensates in Real Time for incoming Line Voltage Variations : Compensates for +/-2% change in RMS Voltage/Cycle and +/-2% Hz change in Frequency/Second
  • Provides Air-Gap off
  • Module protects itself during temporary Over-Current and Over-Voltage Conditions
Downloads
Specification
Style Grafik Eye
Type Phase-Adaptive Power Module
Control / Load Power • 120 V~ / 120 V~
• 50/60 Hz, Phase-to-Neutral
Load (Output) Power Phase Independent of Control Unit
Capacity 16 A
Terminals Accept up to two #12 AWG (2.5 mm²)
Environment • 32-104 °F (0-40 °C), Relative Humidity less than 90% Non-Condensing
• Maximum BTU/hour of module : 315
Mounting • Surface or recess mount indoors only
&bul; Power module is UL tested and approved for use in air plenums
Color White
Height (In.) 5.1
Width (In.) 6.3
Depth (In.) 2.4
Standards UL Listed
