Sloan, Flush Valves, G2-8186-1
View detailed images (1)

Sloan, Flush Valves, G2-8186-1

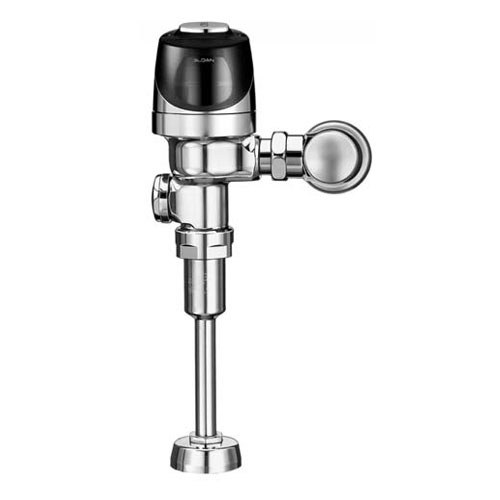

G2 Optima Plus, Exposed, Battery Powered, Sensor Operated G2 Model Urinal Flushometer, For Exposed Flushometer For 3/4" Top Spud Urinals, 1.0 GPF (3250401)

SKUM63173
ManufacturerSloan
Mfr. Part #G2-8186-1
UPC671254266100
Points5.95
$594.84

Features
  • PERMEX Synthetic Rubber Diaphragm with Dual Filtered Fixed Bypass
  • Flex Tube Diaphragm designed for improved life and reduced maintenance
  • ADA Compliant OPTIMA Plus Battery Powered Infrared Sensor for automatic "No Hands" operation
  • Infrared Sensor with Multiple-focused, Lobular Sensing Fields for high and low target detection
  • Latching Solenoid Operator, Engineered Metal Cover with replaceable Lens Window
  • High Back Pressure Vacuum Breaker Flush Connection with One-piece Bottom Hex Coupling Nut
  • Courtesy Flush Override Button
  • "Low Battery" Flashing LED
  • Infrared Sensor Range Adjustment Screw
  • 3/4" I.P.S. Screwdriver Bak-Chek Angle Stop
Downloads
Specification
Serises Sensor Operated Flush Valvess
Class Battery Powered Urinal Flush Valvess
Type Diaphragm
Model G2 Optima Plus
Flush Cycle Low Consumption
Gallons per Flush (GPF.) 1
Top-Spud (In.) 3/4
Function Touchless Sensor Operation
Battery Type (4) AA
Finish Chrome Plated
Warranty 3 Years Limited
