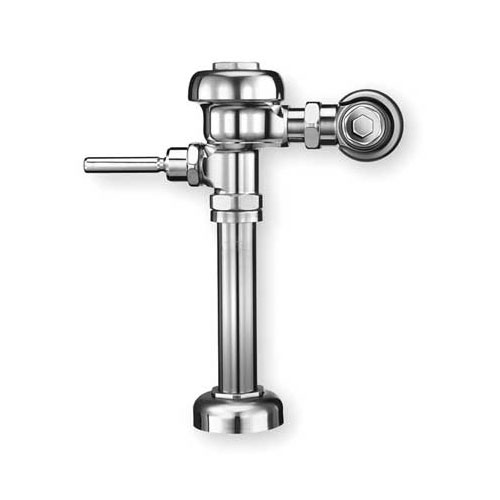

Sloan, Flush Valves, REGAL-111-XL
View detailed images (1)

Sloan, Flush Valves, REGAL-111-XL

Regal, Exposed Water Closet Flush Valvess, For Floor Mounted or Wall Hung Top Spud Bowls, 1.6 GPF (3080053)

SKUM63165
ManufacturerSloan
Mfr. Part #REGAL-111-XL
UPC671254123403
Points1.26
$125.66

Features
  • ADA Compliant Metal Oscillating Non-Hold-Open Handle
  • 1" I.P.S. Screwdriver Bak-Chek Angle Stop
  • Vandal Resistant Stop Cap
  • Adjustable Tailpiece
  • Vacuum Breaker Flush Connection
  • High Copper, Low Zinc Brass Castings for Dezincification Resistance
  • Non-Hold-Open Handle and No External Volume Adjustment to Ensure Water Conservation
  • Low Consumption flush accuracy controlled by Para-Flo Technology
  • Handle Packing, Stop Seat and Vacuum Breaker to be Molded from PERMEX Rubber Compound for Chloramine Resistance
Downloads
Specification
Serises Manual Flush Valvess
Class Flush Valves
Type Diaphragm
Model Regal
Flush Cycle Low Consumption
Gallons per Flush (GPF.) 1.6
Top-Spud (In.) 1 1/2
Finish Chrome Plated
Standards CSA Certified
Includes ADA Compliant Handle, Vandal Resistant Stop Cap With Set Screw, Sweat Solder Adapter With Cover Tube and Cast Set Screw Wall Flange
