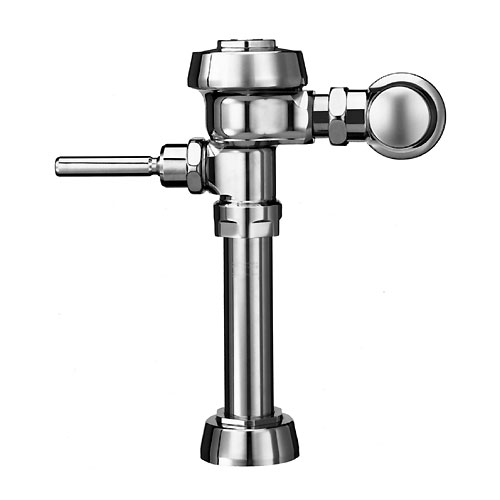

Sloan, Flush Valves, ROYAL-111-1.6
View detailed images (1)

Sloan, Flush Valves, ROYAL-111-1.6

Royal, Exposed Water Closet Flush Valvess, For Floor Mounted or Wall Hung Top Spud Bowls, 1.6 GPF (3010000)

SKUM63174
ManufacturerSloan
Mfr. Part #ROYAL-111-1.6
UPC671254046191
Points1.82
$181.81

Features
  • PERMEX Synthetic Rubber Diaphragm with Dual Filtered Fixed Bypass
  • ADA Compliant Metal Oscillating Non-Hold-Open Handle with Triple Seal Handle Packing
  • 1" I.P.S. Screwdriver Bak-Chek Angle Stop
  • Free Spinning Vandal Resistant Stop Cap
  • Adjustable Tailpiece
  • Sweat Solder Adapter w/Cover Tube & Cast Wall Flange w/Set Screw
  • High Back Pressure Vacuum Breaker Flush Connection with One-piece Bottom Hex Coupling Nut
  • High Copper, Low Zinc Brass Castings for Dezincification Resistance
  • Non-Hold-Open Handle, Fixed Metering Bypass and No External Volume Adjustment to Ensure Water Conservation
  • Flush Accuracy Controlled by CID Technology
Downloads
Specification
Serises Manual Flush Valvess
Class Flush Valves
Type Diaphragm
Model Royal
Flush Cycle Low Consumption
Gallons per Flush (GPF.) 1.6
Top-Spud (In.) 1 1/2
Finish Chrome Plated
Standards CSA Certified
