Sloan, Flush Valves, ROYAL-186-1
View detailed images (1)

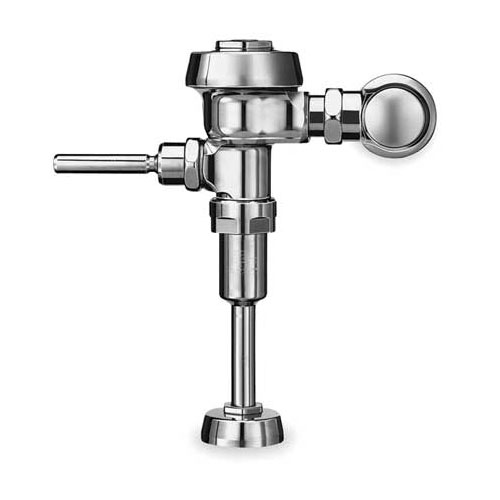

Sloan, Flush Valves, ROYAL-186-1

Royal, Exposed Urinal Flush Valves, For 3/4" Top Spud Urinals, 1.0 GPF (3012636)

SKUM63175
ManufacturerSloan
Mfr. Part #ROYAL-186-1
UPC671254116139
Points1.82
$181.81

Features
  • PERMEX Synthetic Rubber Diaphragm with Dual Filtered Fixed Bypass
  • ADA Compliant Metal Oscillating Non-Hold-Open Handle with Triple Seal Handle Packing
  • 3/4" I.P.S. Screwdriver Bak-Chek Angle Stop
  • Free Spinning Vandal Resistant Stop Cap
  • Adjustable Tailpiece
  • High Copper, Low Zinc Brass Castings for Dezincification Resistance
  • High Back Pressure Vacuum Breaker Flush Connection with One-piece Bottom Hex Coupling Nut
  • Non-Hold-Open Handle, Fixed Metering Bypass and No External Volume Adjustment to Ensure Water Conservation
  • Flush Accuracy Controlled by CID Technology
  • 100% of the energy used in manufacturing is offset with Renewable Energy Sources ? Wind Energy
Downloads
Specification
Serises Manual Flush Valvess
Class Urinal Flush Valves
Type Diaphragm
Model Royal
Flush Cycle Low Consumption
Gallons per Flush (GPF.) 1
Top-Spud (In.) 3/4
Finish Chrome Plated
Standards CSA Certified
