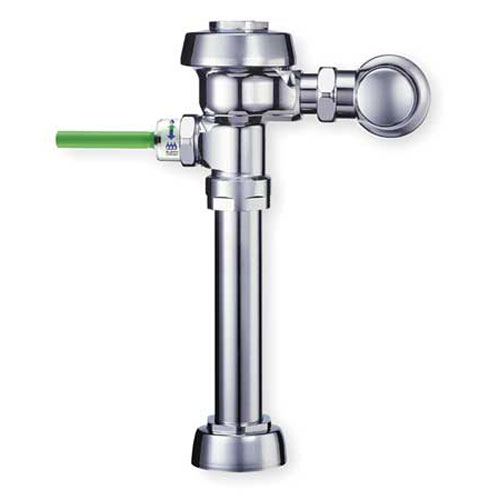

Sloan, Flush Valves, WES-111

UPPERCUT, Exposed Water Closet Flush Valves with Dual Flush Feature, HET, 1.6/1.1 GPF (3720000)

SKUM63162
ManufacturerSloan
Mfr. Part #WES-111
UPC671254315327
Points2.16
$215.96

Features
  • Lifting Handle UP initiates reduced flush (1.1 gpf/4.2 Lpf), eliminating liquid and paper waste, saving a 1/2-gallon of water
  • Pushing Handle DOWN initiates full flush (1.6 gpf/6.0 Lpf), eliminating all waste
  • Reduces water volume by up to 30% when activated UPWARDS
  • Antimicrobial Coating on Handle protects against germs
  • Distinctive Green ADA Compliant Metal Non-Hold-Open Handle with Triple Seal Handle Packing signifies Water Conserving Device
  • 1" I.P.S. Screwdriver Bak-Chek Angle Stop
  • Free Spinning Vandal Resistant Stop Cap, Adjustable Tailpiece
  • High Back Pressure Vacuum Breaker Flush Connection with One-piece Bottom Hex Coupling Nut
  • Sweat Solder Adapter with Cover Tube and Cast Set Screw Wall Flange, High Copper, Low Zinc Brass Castings for Dezincification Resistance
  • Non-Hold-Open Handle, Fixed Metering Bypass and No External Volume Adjustment to Ensure Water Conservation
Downloads
Specification
Serises Manual Flush Valvess
Class Dual Flush Flush Valves
Type Diaphragm
Model UPPERCUT
Flush Cycle High Efficiency
Gallons per Flush (GPF.) 1.6(Down)/1.1(UP)
Top-Spud (In.) 1 1/2
Finish Chrome Plated
