Taco, Pumps, 007-F5-7IFC
View detailed images (1)

Taco, Pumps, 007-F5-7IFC

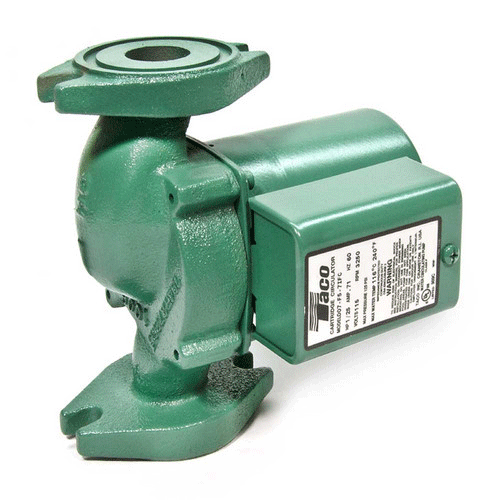

Taco Pumps, 007-F5-7IFC, Model 007-F5-7IFC, 1/25 HP Cast Iron Cartridge Circulator with Integral Flow Check, Circulator with Integral Flow Check, M63323

SKUM63323
ManufacturerTaco
Mfr. Part #007-F5-7IFC
UPC687752539288
Points1.43
$142.62

Features
  • Integral Flow Check (IFC) , Prevents gravity flow, Eliminates separate in-line flow check, Reduces installed cost, easy to service, Improved performance vs. In-line flow checks
  • Unique replaceable cartridge-Field serviceable
  • Unmatched reliability-Maintenance free
  • Quiet, efficient operation
  • Self lubricating, No mechanical seal
  • Wide range of applications
  • Cast Iron or Bronze Construction, Flanged connections
Downloads
Specification
Type Circulator Pumps
Horse Power (HP) 1/25
Connection Type Flanged
Voltage (V) 115
Ampere (A) 0.71
Hertz (Hz) 60
Phase 1
RPM 3250
Flow Range (GPM) 0-17
Head Range (ft.) 0-8.5
Fluid Temperature Temperature Range (°F) 40-230
Maximum Working Pressure 125 psi
Material Cast Iron
