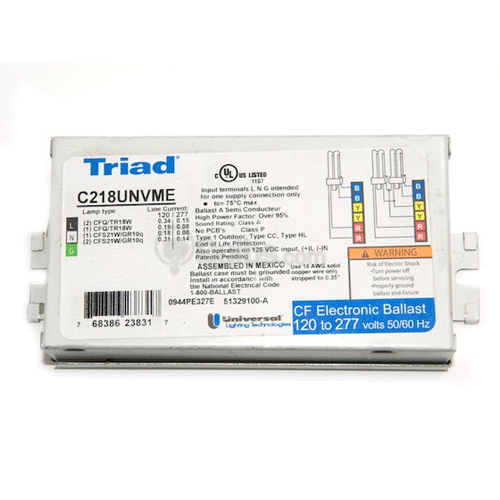

Universal Lighting Technologies, Electronic Ballast kit, C218UNVME000K, M35066
View detailed images (1)

Universal Lighting Technologies, Electronic Ballast kit, C218UNVME000K, M35066

Universal Lighting Technologies, Electronic Ballast kit, C218UNVME000K, M35066

SKUM35066
ManufacturerUniversal Lighting Technologies
Mfr. Part #C218UNVME000K
UPC768386238270
Points0.25
$25.46

Features
  • Universal input voltage (108 305 volts, 50/60Hz)
  • (1/2) lamp operation of multiple lamp applications
  • End-of-lamp life shutdown circuit for safe operation
  • Auto-reset of lamp after shutdown
  • THD<10%; Power Factor >.98
  • Programmed Rapid Start (PRS) to maximize lamp life
  • Lamp Application ; (1) or (2) 18 Watt Quad (1) or (2) 18 Watt Multi (1) or (2) 21 Watt 2D""
  • Mult-E Kit Contains : - Multi-exit ballast - Snap-mount adapter plate - Lead wire set - Wire extraction tool - Instructions""
  • Side and Bottom Exit Terminals
Downloads
Specification
Type Electronic Ballast
Lamp Type Compact
Number of Lamps 1 or 2
Application CFQ18W/G24q, CFM18W/GX24q, CFS21W/GR10q (2D) 4 pin
Input Volts (V) 120/277
Starting Method Programmed Rapid Start
Height (In.) 1
Width (In.) 2.31
Length (In.) 4.94
Standards cULus Listed (Class P) Type 1 Outdoor, Type CC, Type HL
